Laser marking size, size is quite clear.
Each set has a certificate, to state the accuracy of each size.
Smooth finish 10 micro or better
Uniform 2” length.
A must for checking hole diameter & dis tance between holes and hole location.

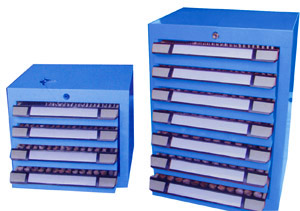

Sizes marked on storage case.
All gages within 0.0002”.
Gage Set | Minus | Plus | |
Size Range | No. | Order No. | Order No. |
.011-.750 | M0 to M4 | 616-8185 | 616-8184 |
.061-.750 | M1to M4 | 616-8191 | 616-8190 |
.061-.5005 | M1to M3 | 616-8187 | 616-8186 |
.011-.5005 | M0 to M3 | 616-8189 | 616-8188 |
.061-1.000 | M1 to M7 | 616-8195 | 616-8194 |
.011-1.000 | M0 to M7 | 616-8197 | 616-8196 |
.751-1.000 | M5 to M7 | 616-8199 | 616-8198 |
